Vxfly CCROV-2 Underwater ROV (492' Tether)

CCROV 2 150M

New product

Price US$3100.00 Vxfly CCROV-2 Underwater ROV (492' Tether)

More details

15 Items

$3,100.00

Add to wishlist

More info

Key Features
  • 328' Depth Rating
  • 4K UHD Video, 12MP Photos
  • Six Thrusters, Five Degrees of Freedom
  • Camera Tilts 150°
  • 90° Field of View
  • Six 1000-Lumen LEDs
  • Stream Video to Phone
  • Rechargeable 146Wh Battery
  • Measures 11 x 11 x 7", Weighs 13.2 lb

Vxfly CCROV-2 Overview

Suited to a wide range of recreational, commercial, scientific, and public safety uses, the CCROV-2 Underwater ROV from Vxfly is a nimble, remote-controlled explorer that captures 4K video and 12MP photos of the underwater world. The ROV employs four horizontal and two vertical thrusters to achieve five degrees of freedom, operated by remote controller or your phone using the CCROV app.

With a 328' depth rating and 492' tether, the CCROV has applications in aquaculture, engineering, vessel and underwater infrastructure inspection, search and rescue, fishing, and underwater photography for profit or pleasure. Its camera is equipped with a Sony IMX 117 1/2.3 CMOS sensor and features an f/2.8 lens, fixed infinite focus, and a 90° field of view. Power is supplied by a rechargeable 146Wh battery pack located in the Tether Deployment System, which spools the tether on a boat or on shore. The TDS provides a Wi-Fi link for streaming video to your phone or tablet and transmitting motion control from the remote controller (or your device) to the ROV. The ROV measures 11 x 11 x 7" and weighs 13.2 pounds.

Applications
  • Explore underwater environments and marine life as far as 328' below the surface
  • Inspect undersides of boats, aquaculture facilities, or infrastructure such as dams and supports
  • Grab underwater footage and photos for content creation
Camera
  • Records 4K UHD video at 30-fps
  • Captures 12MP still photos
  • 1/2.3" CMOS sensor, f/2.8 lens
Use and Handling
  • Depth-rated 328'
  • 492' tether
  • Four horizontal, two vertical thrusters deliver five degrees of freedom
  • Top speed 6.8' per second
  • Powered by 146Wh 18650 rechargeable battery pack with four hours' runtime
  • Game console-style transmitter/remote controller with smartphone dock
  • Tether Deployment System (TDS) spools cable on boat or shore
  • TDS creates Wi-Fi link for streaming video to smartphone/tablet and movement control from remote controller (or smartphone/device) to ROV

Vxfly CCROV-2 Specs

Camera
Image Sensor
1/2.3" CMOS
Resolution
Photo:
12 MP: 4000 x 3000
Video:
3840 x 2160 / 30 p
1920 x 1080p / 120/60-fps
1280 x 720 / 240/120-fps
Aperture
f/2.8
Field of View
90°
ROV
Depth Rating
328' / 100 m
Speed
6.6' / 2 m per Second
Lighting
6 x 1000-Lumen LEDs
Power
Rechargeable Battery: 146 Wh
Runtime: 4 h
Dimensions
11 x 11 x 7" / 28 x 28 x 17.9 cm
Weight
5.5 lb / 2.5 kg
Base Station
Maximum Tethering Distance
82' / 25 m
Connectivity
Wi-Fi Link to Remote Controller & Smartphone/Tablet
Operating Frequency
2.4 GHz
Dimensions
9.4 x 12.2 x 11.5" / 23.8 x 31.0 x 29.3 cm
Weight
16.5 lb / 7.5 kg, Plus Battery

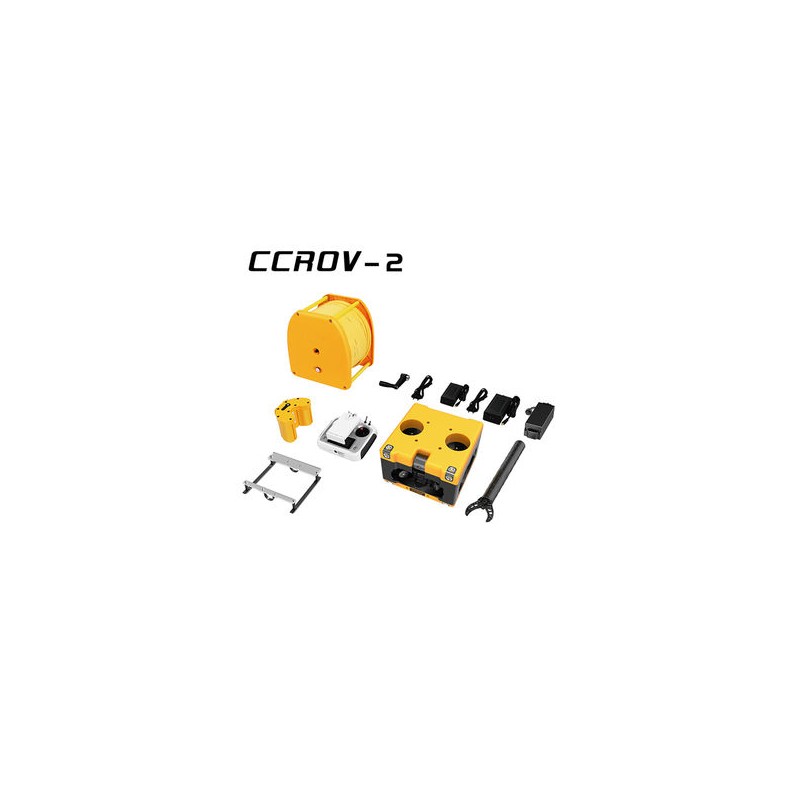

Items Included

  • Vxfly CCROV-2 Underwater ROV (492' Tether)
  • Tether Deployment System
  • Remote Controller
  • Battery Pack
  • Limited 1-Year Warranty on ROV
  • Limited 6-Month Warranty on Battery & Remote Control
